A window display is often the first impression a fashion store makes — and lighting can make or break that impression. The wrong lightbox display adds visual clutter with a bulky frame; the right one disappears into the glass and lets the merchandise do the talking. That's where ultra-thin LED light boxes have become the standard for fashion retailers who want a premium, gallery-like look.

Why LED Light Boxes Are the Go-To Choice for Fashion Window Displays

LED advertising light box give retailers even, consistent illumination without the heat and energy draw of older lighting systems. Compared with fluorescent display light box, LED light box may not always reduce power consumption by 80% or 90%, because fluorescent lamps are already more efficient than incandescent lamps. The real advantage of LED comes from higher system efficacy, better light direction, thinner structure, lower heat, easier control and reduced maintenance.. For a fashion brand, consistent brightness across the whole graphic matters — any dark spots immediately look unfinished next to a clean garment display. LED also runs cool enough to sit close to glass and fabric without safety concerns, which is why it has replaced fluorescent and neon-tube light boxes almost entirely in retail settings.

Key Design Elements of a Premium Window Display

Brightness Uniformity and Color Rendering (CRI)

Two technical details separate a premium display from an average one: uniformity and color accuracy. CRI70+ available for general advertising light box applications. CRI80+ or CRI90+ can be selected for retail projects requiring better color performance.. Even light distribution across the entire panel, with no visible hotspots near the LED source, is what makes a light box look "high-end" rather than like a lit sign.

Why Ultra-Thin Light Boxes Work Best for Storefront Windows

Storefront windows have limited depth to work with, and every millimeter of frame thickness competes with display space. CITYLUX photo frame LED light boxes use a slim 10mm–14mm structure, depending on size and project requirements. For fashion retailers in particular, that thin, almost invisible frame supports the minimalist aesthetic most premium brands are going for.

Technical Specifications to Check Before You Buy

B2B buyers researching light boxes usually want the actual numbers before they'll request a quote. A quick specs reference:

Spec	What to Look For	CITYLUX
Panel thickness	Thinner = more display depth preserved	10-14mm
CRI (color rendering)	90+ recommended for true-to-life color	70+
Voltage	Standard for retail installs	12V/24V
Color temperature range	Should match your store's interior lighting	-25~45°C
Certifications	CE/RoHS for commercial installs	CE, ROSH, UKCA, REACH, UL
Graphic change method	Faster swaps = easier seasonal campaigns	Slide-in
Lifespan / warranty	Signals durability for a storefront fixture	2 Years

Slim Profile vs. Traditional Light Boxes — What's the Difference

Traditional light boxes typically use a deeper aluminum frame to house the light source and diffuser, which adds visible bulk and often limits where they can be installed. Ultra-thin designs use edge-lit LED strips paired with a thin light guide plate (LGP), achieving full, even brightness across the panel at a fraction of the depth.

Compared with traditional light box cabinets that may require around 100mm–170mm depth, CITYLUX led display light boxes are designed with a 10mm–14mm slim profile. This makes them easier to integrate into retail stores, restaurants, shopping malls and wall-mounted advertising displays where space, appearance and installation depth matter. For retail spaces, the practical benefits are clear: the ultra-thin light box mounts flush with windows and walls, preserving valuable floor space, while the slide-in design speeds up graphic replacement.

Installation Considerations for Retail Environments

Fashion retailers often underestimate how much installation method affects long-term maintenance:

Wall or Hanging mount — most common for window displays; check the mounting hardware supports the panel weight and your wall type

• Recessed vs. surface mount — recessed installs look cleaner but require more planning during store buildout or renovation
• Power supply placement — for storefronts with limited electrical access, confirm cable length and driver location before ordering
• Graphic change frequency — if you rotate window graphics seasonally or monthly, prioritize a format designed for fast changes (magnetic frame, side-in track, etc.)

CITYLUX slide-in LED light boxes support 3-second graphic replacement. Store staff only need to pull out the backlit film from the top of the frame and insert a new graphic. This makes the display practical for retail stores, restaurants and promotional areas where posters or menus need to be updated frequently.

Adding Accent Lighting for a More Premium Feel

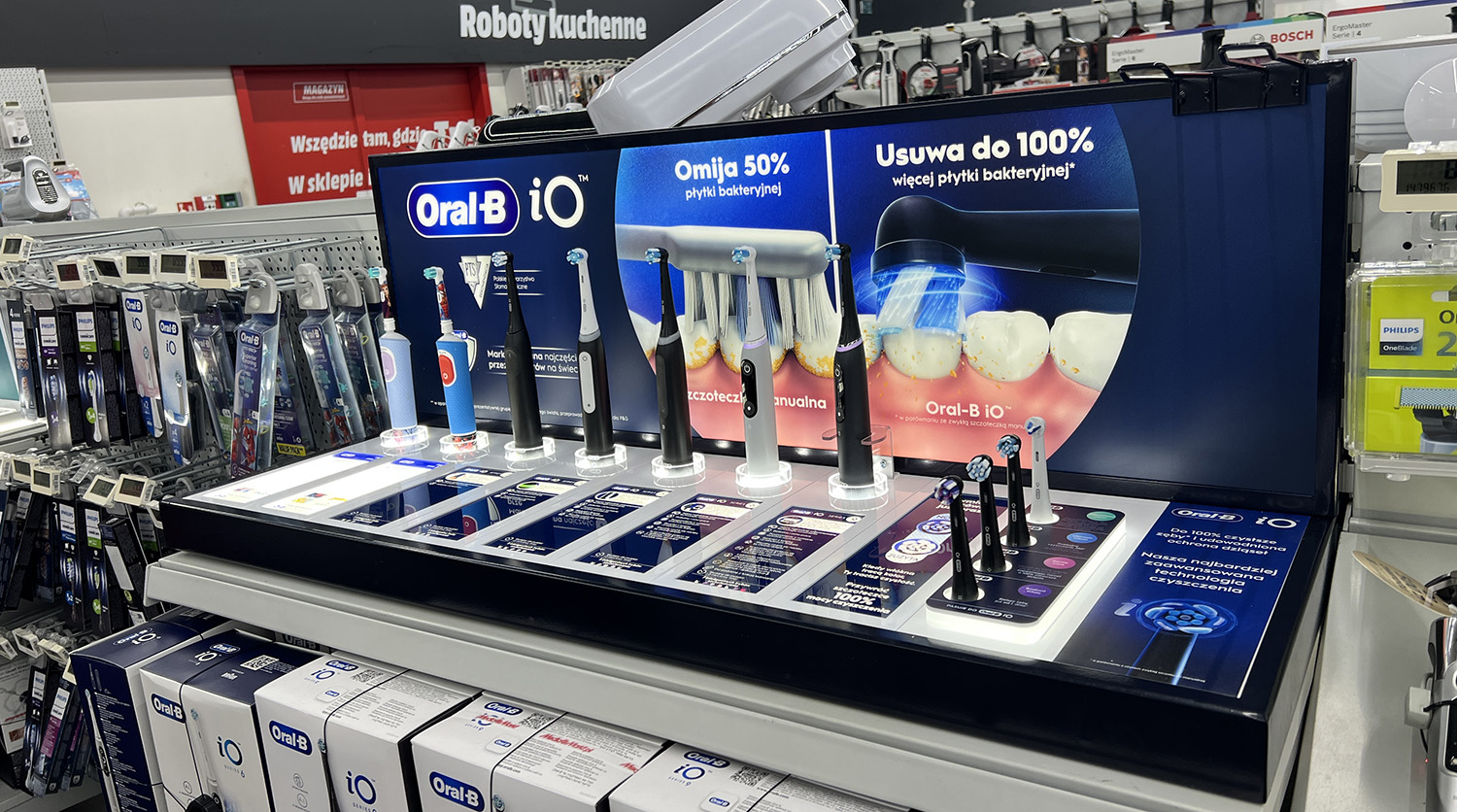

A single light box rarely stands alone in a well-designed display. Flexible LED strips or neon-style strip lighting along shelf edges, mannequin platforms, or the display perimeter add depth and draw the eye toward focal pieces.  CITYLUX Case Study: Oral-B Retail Display with Ultra Thin LED Light Box

For example, in an Oral-B retail display project in Europe, CITYLUX ultra thin LED light boxes were used as the illuminated background for an electric toothbrush showcase. The backlit graphics helped the Oral-B iO products and promotional messages stand out in a busy store environment, while the slim 10mm–14mm structure allowed the light box to fit neatly into the shelf display system.

This type of solution is especially suitable for brand counters, personal care products, electronics, cosmetics and supermarket promotion areas where both advertising graphics and product visibility matter.

Common Mistakes Fashion Retailers Make with Window Lighting

• Oversized frames that shrink usable display space
• Mismatched color temperature between the light box and store interior lighting
• Ignoring viewing angle — displays viewed at a steep angle from the sidewalk need wider light distribution
• Treating the light box as a one-time install — graphics should be easy to swap for seasonal campaigns
• Skipping certification checks — commercial installs typically require CE/RoHS-certified fixtures; skipping this can create compliance issues for multi-location retailers
• Underestimating order lead time for custom sizes — fashion storefronts often have non-standard window dimensions.

CITYLUX custom production lead time depends on the order quantity and project requirements. In general, customized orders over 1,000 pieces require about 7 days, while orders over 3,000 pieces require about 15 days after order confirmation.

Not every project needs a deep traditional light box cabinet. In many retail environments, the display is installed close to shelves, walls, counters or store fixtures. In these cases, thickness and maintenance access become important.

CITYLUX ultra thin LED light boxes are designed with a 10mm–14mm slim profile, making them suitable for retail advertising displays where space and appearance matter. Compared with traditional light box cabinets, the slim structure reduces visual bulk and helps the display integrate more naturally into modern commercial interiors. For stores that update promotions frequently, the top slide-in graphic replacement design is also practical. Staff can pull out the backlit film from the top and insert a new graphic in about 3 seconds, without removing the whole frame.

Have a project in mind? Please contact us！

Frequently Asked Questions

1.How thick is an ultra-thin LED light box compared to a standard one?

Q:Traditional light box cabinets are usually around 100mm–170mm deep. CITYLUX ultra-thin LED light boxes use a slim 10mm–14mm profile, making them easier to fit into retail stores, restaurants, menu boards and wall-mounted advertising displays.

2.Can ultra-thin light boxes be custom sized for non-standard windows?

Q:Yes. CITYLUX supports custom sizes for non-standard windows, wall displays, menu boards and retail advertising projects. Buyers can provide the size, frame color, installation method, quantity and application for a suitable recommendation.

3.How often do LED light boxes need graphic replacement or maintenance?

Q:CE and RoHS are common baseline certifications for commercial LED light boxes. For European or UK projects, buyers may also need REACH or UKCA depending on the market requirement. CITYLUX can support CE, RoHS, REACH and UKCA options.

4.What certifications should I look for when buying for multiple store locations?

Q:It depends on the campaign schedule. CITYLUX slide-in LED light boxes allow the backlit film to be pulled out from the top and replaced in about 3 seconds. Daily maintenance is usually simple, mainly keeping the surface clean and checking the power connection when needed.
